CHAPTER 12

Leg-Braces for Noé:

from Old Plastic Buckets to Polypropylene

The backward bend of his knees.

NOÉ was a cheerful boy with "diplegic" cerebral palsy (meaning that mainly his legs are affected). When he was 5 years old he learned to walk with crutches, but with a lot of difficulty. He stood very stiffly on his slender, spastic legs. The tiptoe (equinus) position of his feet pushed his knees backward (recurvatum). As he grew bigger, his knees bent farther and farther back. When he was 8, a specialist in the city prescribed full-leg metal braces with orthopedic boots. Noé wore them for a while, but hated them. They were heavy and awkward and slowed him down. He protested so much that after a few months his parents gave up trying to make him wear them. The backward bend of his knees gradually grew worse and he began to complain of knee pain. When Noé was 10, his family learned about PROJIMO and took him there.

His feet need to angle up slightly (preventing tiptoeing).

The team realized that if Noé kept walking with his knees bending so far backward, the ligaments (cords) behind the knees would stretch more and more, until walking would become impossible (see page 128). Perhaps if his feet could angle up slightly (preventing tiptoeing) he might be able to walk without his knees bending so far backward. Light-weight, below-the-knee plastic braces might serve the purpose.

When Noé first came in 1981, PROJIMO was just beginning and they had not yet begun to make plastic braces. Although plastic braces were available at large rehabilitation centers in the cities, they were very costly (around US$200 for a single below-the-knee plastic brace). The PROJIMO team decided to experiment with low-cost methods to make plastic leg braces.

Braces made from Plastic Buckets

PROJIMO had been given some old plastic buckets (that once held soy sauce for restaurants). They experimented with heat-molding pieces of the bucket over plaster casts of Noé's feet. At last they developed a method that gave fairly good results. The basic steps (explained in more detail in the book, Disabled Village Children, Chapter 58) are shown below.

Make a plaster cast of the foot in the desired position.     Fill the cast with plaster to make a solid mold. Mark on the child's leg the shape of the brace. Cut shape of leg from old plastic bucket. Heat plastic in an oven (on a powdered metal tray) until soft.  Place the hot plastic over the mold and bind tightly until cool. Smooth and weld the heel joint with a soldering iron. Trim and round the edges of the brace. Add straps as needed, and test the brace.

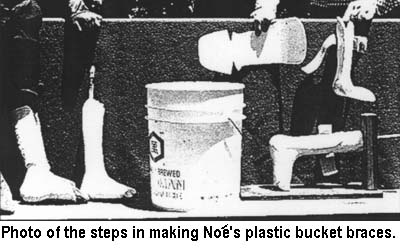

Photo of the steps in making Noés's plastic bucket braces. The completed braces.



090

Results of the Plastic-Bucket Braces

Noés's plastic-bucket braces helped prevent his knees from bending backward.

The below-the-knee plastic-bucket braces did, to some extent, help Noé to stand straighter, with his knees bending back much less. However, when he walked rapidly with a swing-through gait, his knees still bent backward.

The biggest problem with the plastic-bucket braces, however, was that with a child as big and active as Noé, the braces did not last long. They developed cracks and broke within a few weeks.

Plastic bucket braces have proved effective for maintaining a good position of a baby's club feet

However, the plastic bucket braces have proved effective for maintaining a good position of a baby's club feet after the clubbing has been corrected - and for other situations where a child does not walk yet, or puts little stress on the braces.



Polypropylene Braces

Although plastic-bucket braces met some needs at very low cost, for Noé and many persons, stronger plastic was needed. Polypropylene, which is used by professional brace makers, is strong and easier to heat-mold than many other plastics. because it is available in large sheets in a near-by city, PROJIMO began to use it. They made full-leg braces for Noé in the following manner:

Marcelo takes a plaster-cast of Noé's leg.

1. Marcelo takes a plaster-cast of Noé's leg. From this, he will make a solid plaster mold.

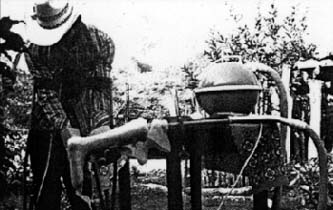

Attaching the leg mold to a vacuum cleaner

2. To avoid bubbles forming under the plastic, he attaches the leg mold to a vacuum cleaner to suck out the air from under the hot plastic. The plastic sheet is being heated in the metal box on the stove (right).

Stretching the soft hot plastic over the mold.

3. He stretches the soft hot plastic over the mold. After it cools, he will cut the plastic to form the brace.

Attaching the plastic lower leg piece to the upper leg piece with jointed metal bars.

4. Roberto, assisted by Noé's mother, attaches the plastic lower leg piece to the upper leg piece with jointed metal bars. (Here, the upper leg piece was made with leather. Later, the leather was also replaced with plastic.)

Noé was delighted with his new plastic braces.



Noé was delighted with his new plastic braces. They were light, comfortable, and kept his knees from doubling backwards. He is now a grown man, but continues to use them, returning to PROJIMO every 2 or 3 years for new braces or repairs.



091

Different Approaches to Making Plastic Braces and Artificial Limbs

Although many programs in the Third World have made no effort to use plastics, others have made good use of plastics, overcoming many obstacles in order to do so:

In Pakistan, where polypropylene is hard to obtain, a community rehabilitation program in Peshawar made braces from the plastic windows of wrecked buses. Instead of an oven, they use a small mud stove full of hot coals. (An electric blower was used to keep them very hot.) The brace makers use pliers to hold the plastic over the stove, moving the plastic back and forth to heat it evenly. (They find they get better results this way than in an oven without a thermostat.)

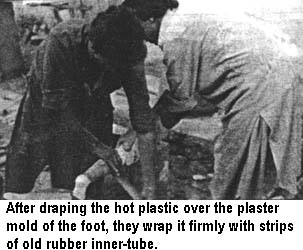

Brace makers in Peshawar heat a sheet of plastic over a small outdoor stove. After draping the hot plastic over the plaster mold of the foot, they wrap it firmly with strips of old rubber inner-tube.

Heating a sheet of plastic. To save on the short supply of polypropylene plastic, the Peshawar workers often mold only the foot-piece out of these. They use plastic PVC pipe for the upper part of the brace. This they heat just enough so that it can be spread to fit the shank of the leg. (If heated until it is quite soft and moldable, PVC, like many plastics, tends to crinkle like bacon.)

The molded foot and PVC leg are then riveted or laced together.



The molded foot and PVC leg are then riveted or laced together.

Pre-molded polypropylene components.

In India, the Gandhi Rural Rehabilitation Center near Madras also combines the use of PVC legs and polypropylene feet. They have simplified and reduced the cost of braces by using pre-molded polypropylene components. They make these in advance, and keep a stock of components in a range of forms and sizes. The components are made by molding the plastic over wooden legs and feet of different sizes.

"It hurts me here!"

This way, they do not need to cast the leg and make a mold for each individual child. The cost of plaster bandage is avoided. (Ironically, this is one of the highest material costs in making plastic braces). Also, fitting is quick. When a child arrives, his needs are evaluated, measurements are taken, components are selected, and the brace is assembled.

The disadvantage to using pre-made parts is that the brace often does not fit the child precisely. The exact fit of the individually-molded brace is lost. I saw several children with these pre-formed braces who had blisters and calluses (especially over the ankle bones), resulting from an imperfect fit.

Never-the-less, with time and patience, most problems can be corrected. Spots that press on bony areas can often be re-heated and pushed out enough to relieve the pressure.

The most important part of fitting braces is to establish a friendly, trusting relationship with the child. Let her know you want her to make suggestions, and to tell you when something bothers her or hurts. When you include the child as a partner in problem-solving, the results are more likely to meet the child's needs.

092
A useful book on low-cost brace-making, called A Plastic Caliper for Children, has been prepared by Handicap International (HI). The book includes many innovations, including the combined PVC and polypropylene braces made at The Gandhi Rural Rehabilitation Center (The Center is assisted by HI.) The steps involved in making braces with pre-formed component parts is summarized at the start of that book as follows:

Steps in manufacturing plastic calipers

Making wooden moulds of different sizes       Moulding shells: PVC shells and polypropylene foot supports from wooden moulds.

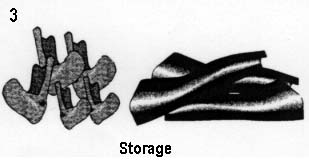

Storage

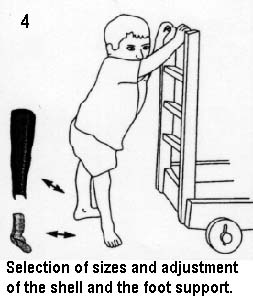

 Selection of sizes and adjustment of the shell and the foot support.  Finishing of the caliper.

A Plastic Caliper for Children, written by HI staff at its Pondicherry, India branch, is available through Handicap International. (For the address, see Resource List 2, page 344.)
